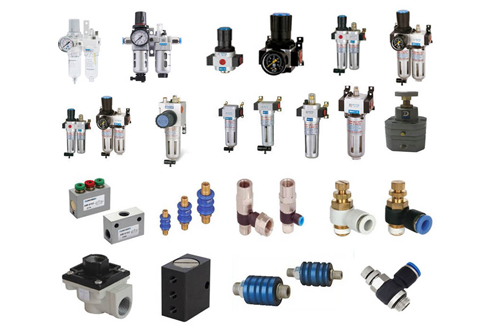

Inline Valves

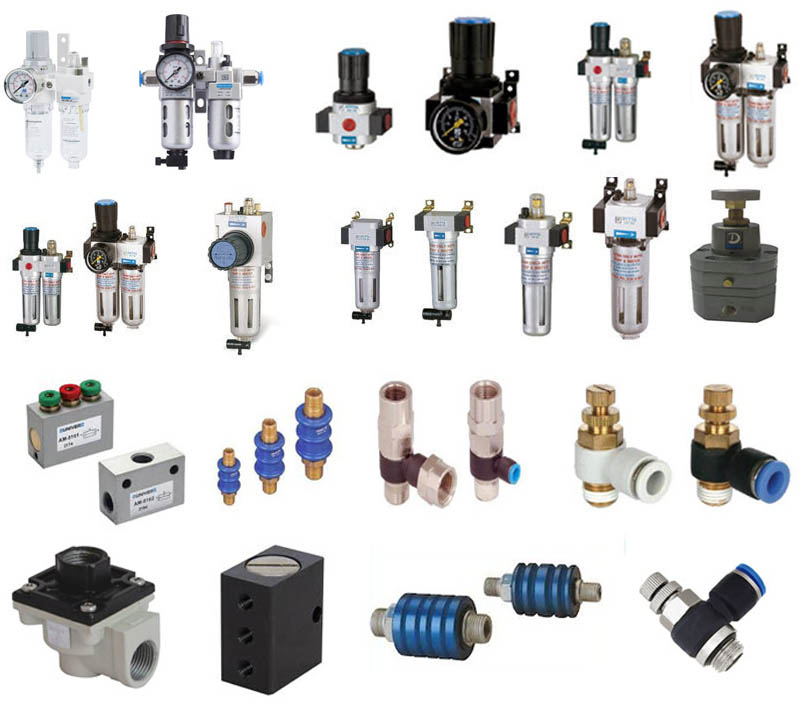

Air preparation Unit FRL

Air Preparation Unit (FRL)
We offer our clients a wide range of precision engineered FRLs (Filters, Regulators and Lubricators). These are manufactured from finest grade basic material to ensure optimum quality and durability. Clients can avail different types of Filters, Regulators and Lubricators; including Air Filters, Air Filter Regulators, Precision Air Pressure Regulators, Lubricators and our patented FRL 500, amongst many others. Our encompassing range of FRLs is in accordance with international standards and finds application in various industries. These are acknowledged by our clients for the following features:
• Sturdy construction
• Price competitive

Air Inline Valves
Flow Control Valves - Push in Type /
Sizes M5, 1/8, 1/4, 3/8, 1/2
• Directly mountable on cylinder/valve ports
• Can be rotated by 360 degree
• Fine regulation of air flow
• Nickel plated body
• Male threads (R) Teflon coated
• Elegant design and finish
Quick Exhaust Valves
Sizes M5, G1/8, G1/4, G3/8, G1/2
• Increase the speed of the cylinder
• With / without silencer
• Connection - M5, G1/8, G1/4, G3/8, G1/2
• Type GQ01 series is with silencer to reduce
the exhaust noise
Pilot Operated Non-Return Valves
Sizes G1/8, G1/4, G3/8, G1/2
• Available in two versions
• Low cracking and closing pressure
• Bubble tight - elastomeric seat
• Plastic portion can be turned by 360°
• Teflon pre-coated male taper threads

Inline Slide Valves
Sizes R1/8, R1/4, R3/8, R1/2, R3/4
• Inline mounted
• Sleeve type, saves space
• Smooth, Easy operation
AND Valves
Sizes M5, G1/8, G1/4
• AND valve delivers air at the outlet (A) only when air signal is present at both inputs (X and Y)
• If two signals of different pressure is applied, the lower pressure is connected to outlet (A).
Hand Lever Operated Ball Valves
G1/4, 3/8, 1/2, 3/4, 1, 11/4, 11/2, 2
• Ball type
• In line mounting
• Easy and smooth operation
• Assembly on rigid pipe system
• Maintenance free
• Bubble tight sealing
• Shut Off (Ball) Valve - Knob type
Hand Lever Valve
FEATURES:
• Media: Compressed air
• Pressure: 0 - 10 bar
• Mounts in any position
• Rugged spool design
• Suitable for manifold mounting
• MOC: Aluminum
• For control valve application
